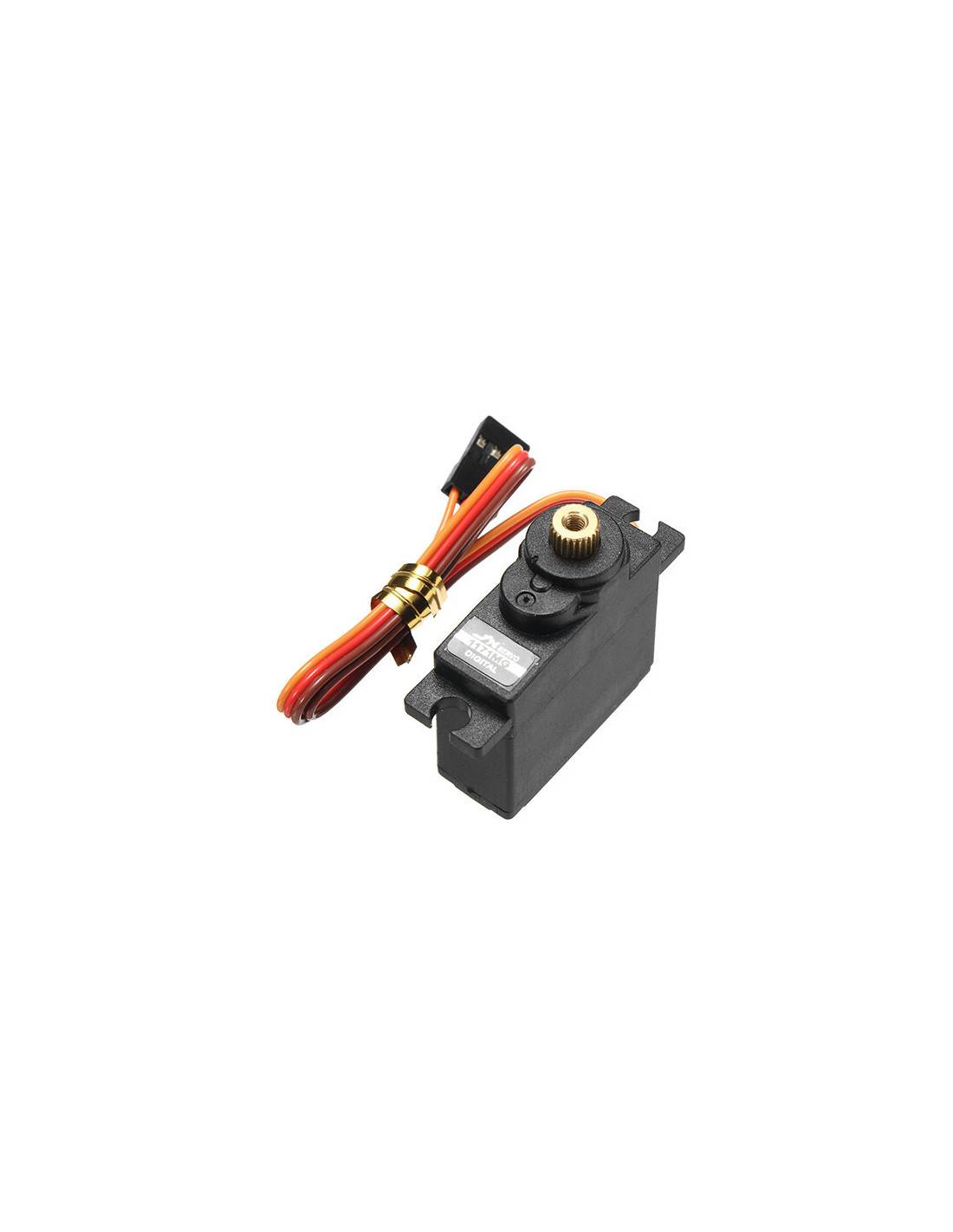

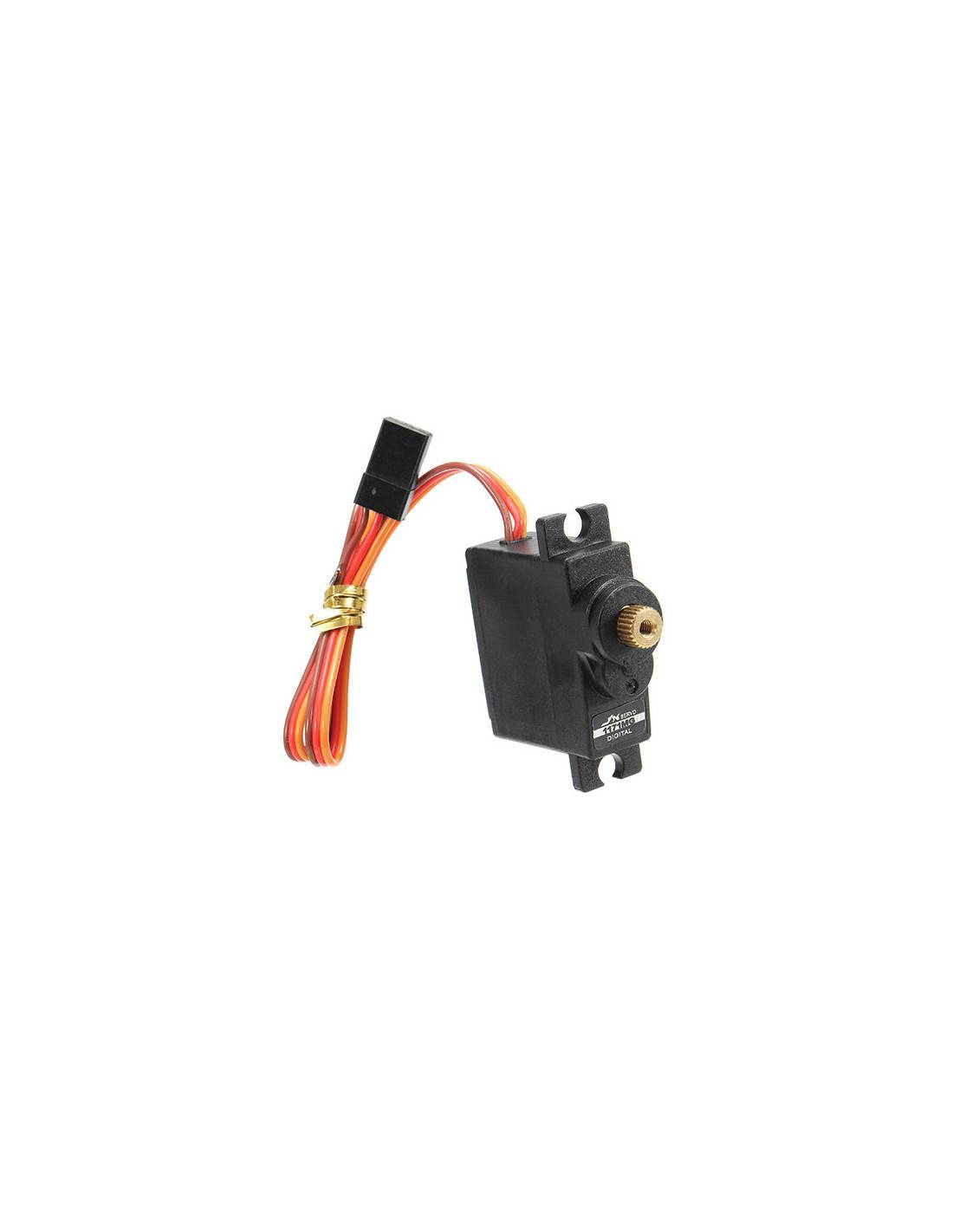

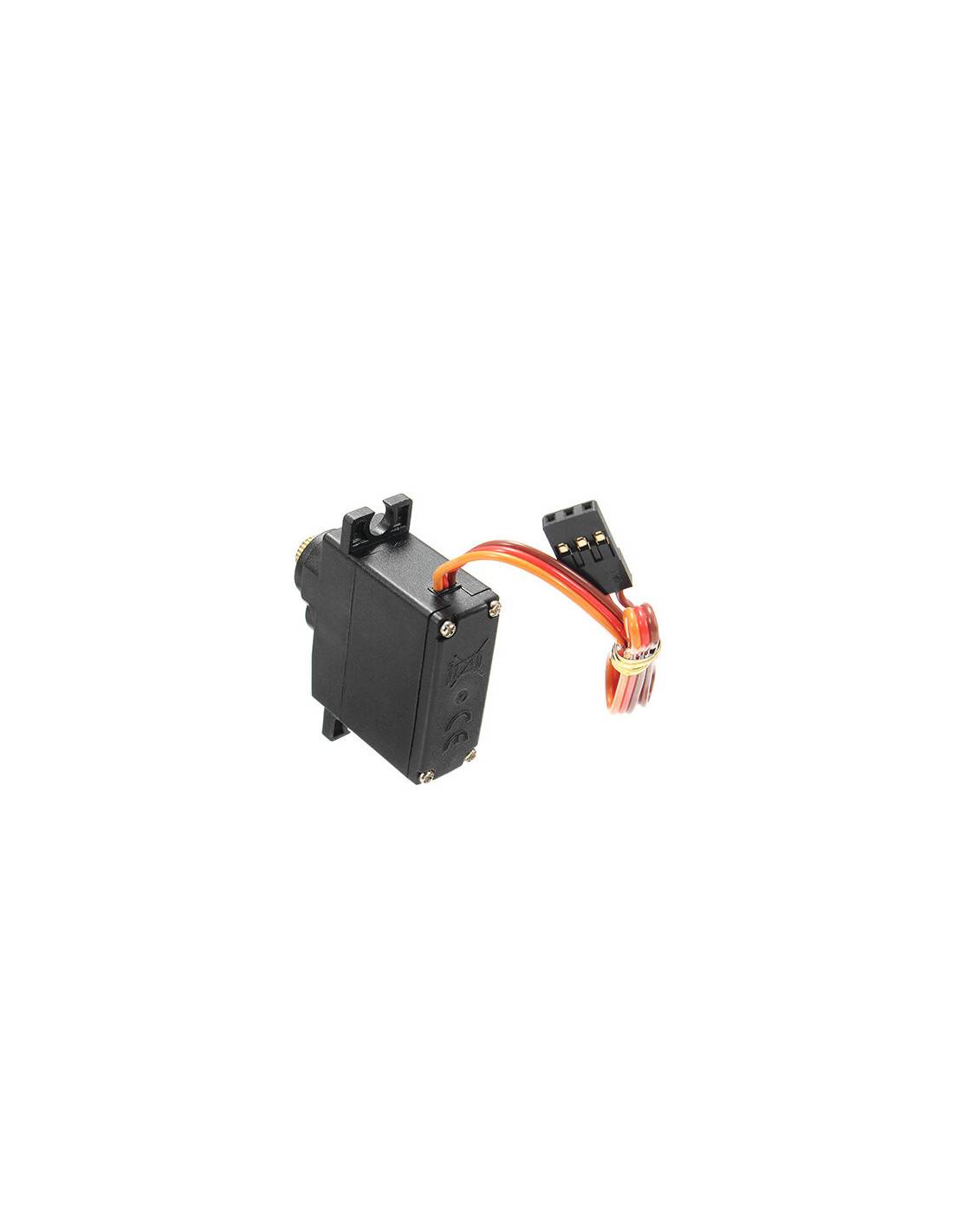

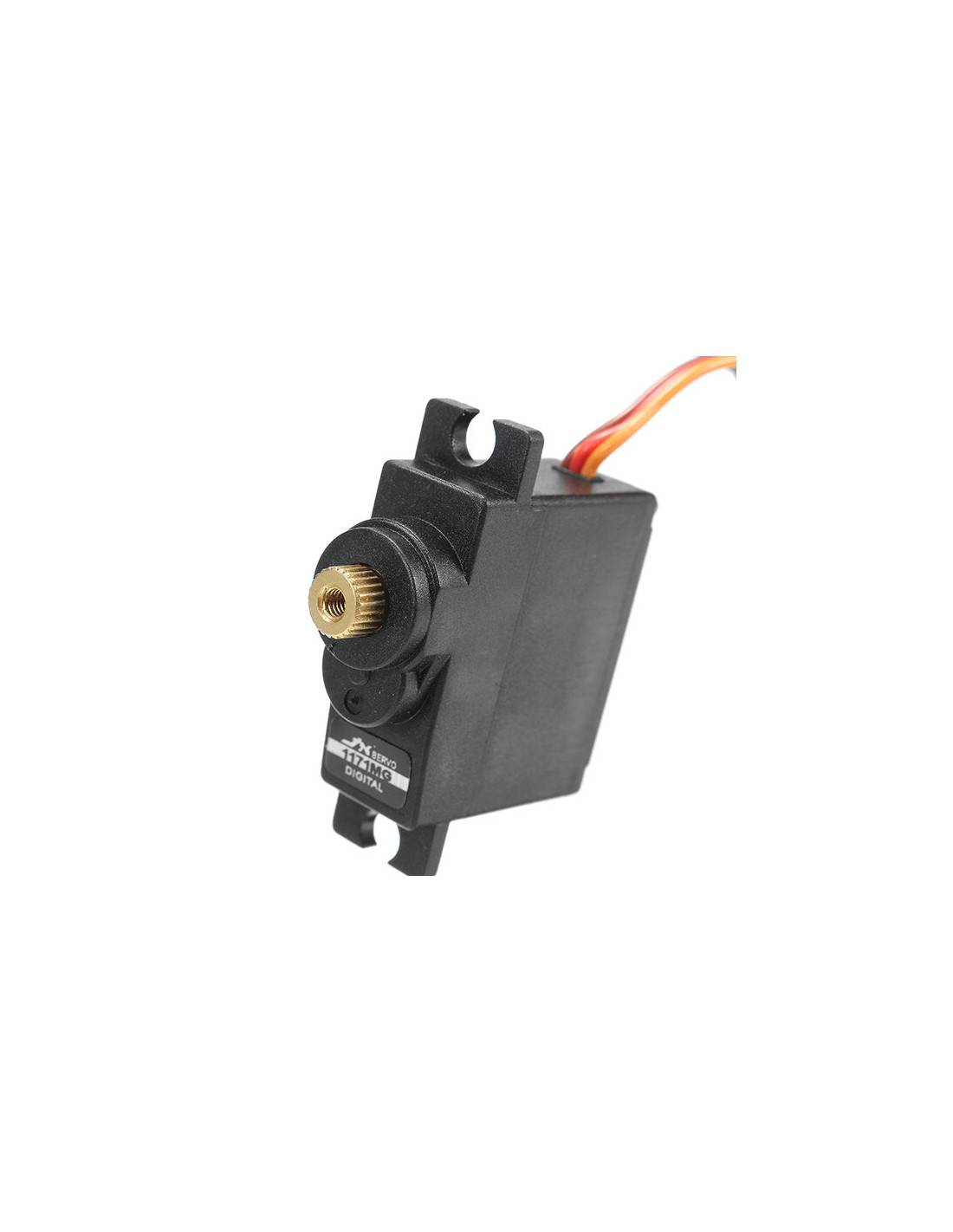

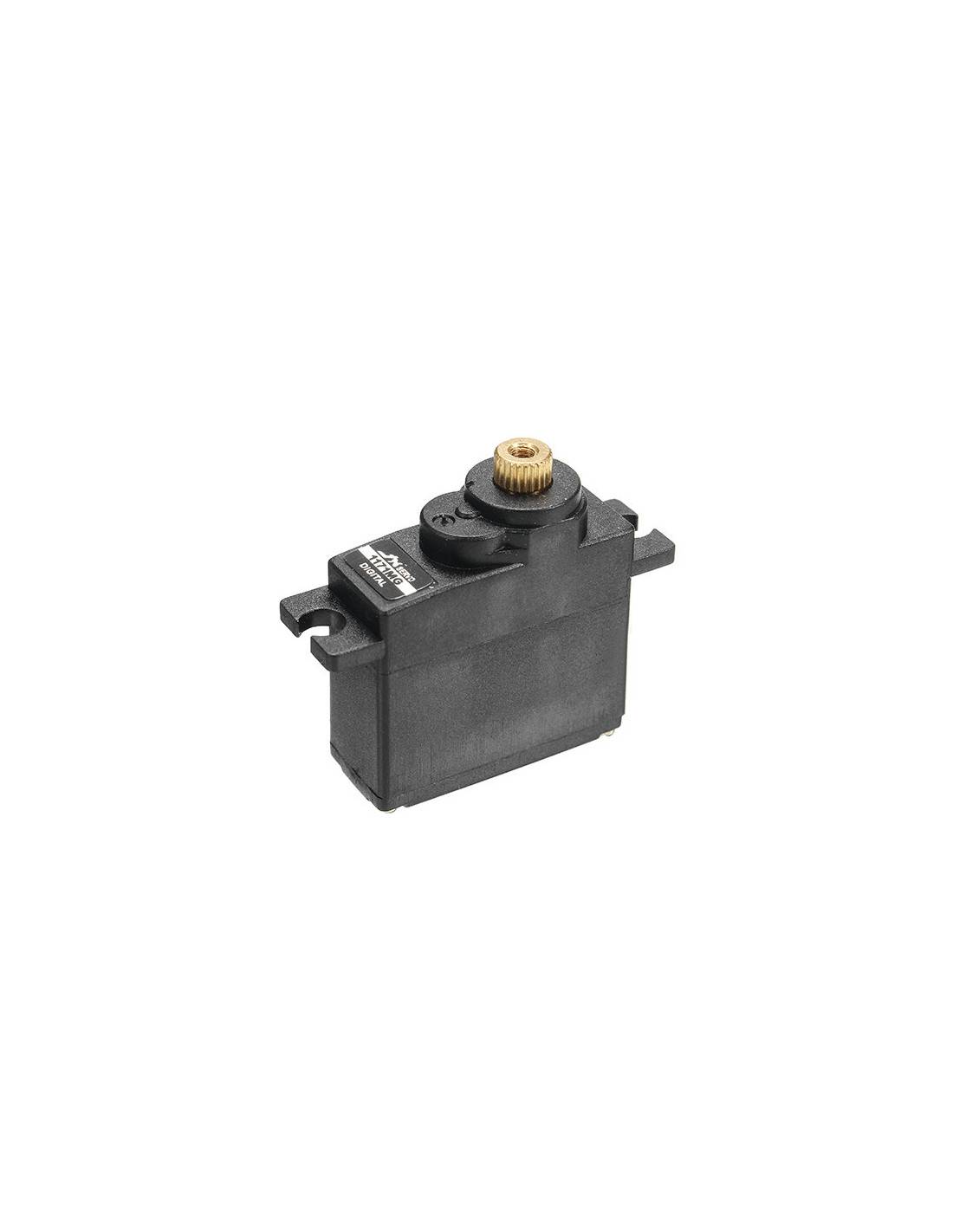

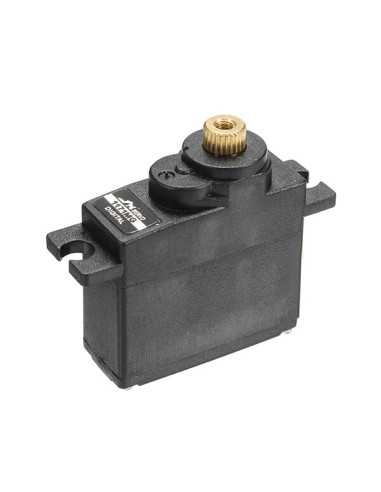

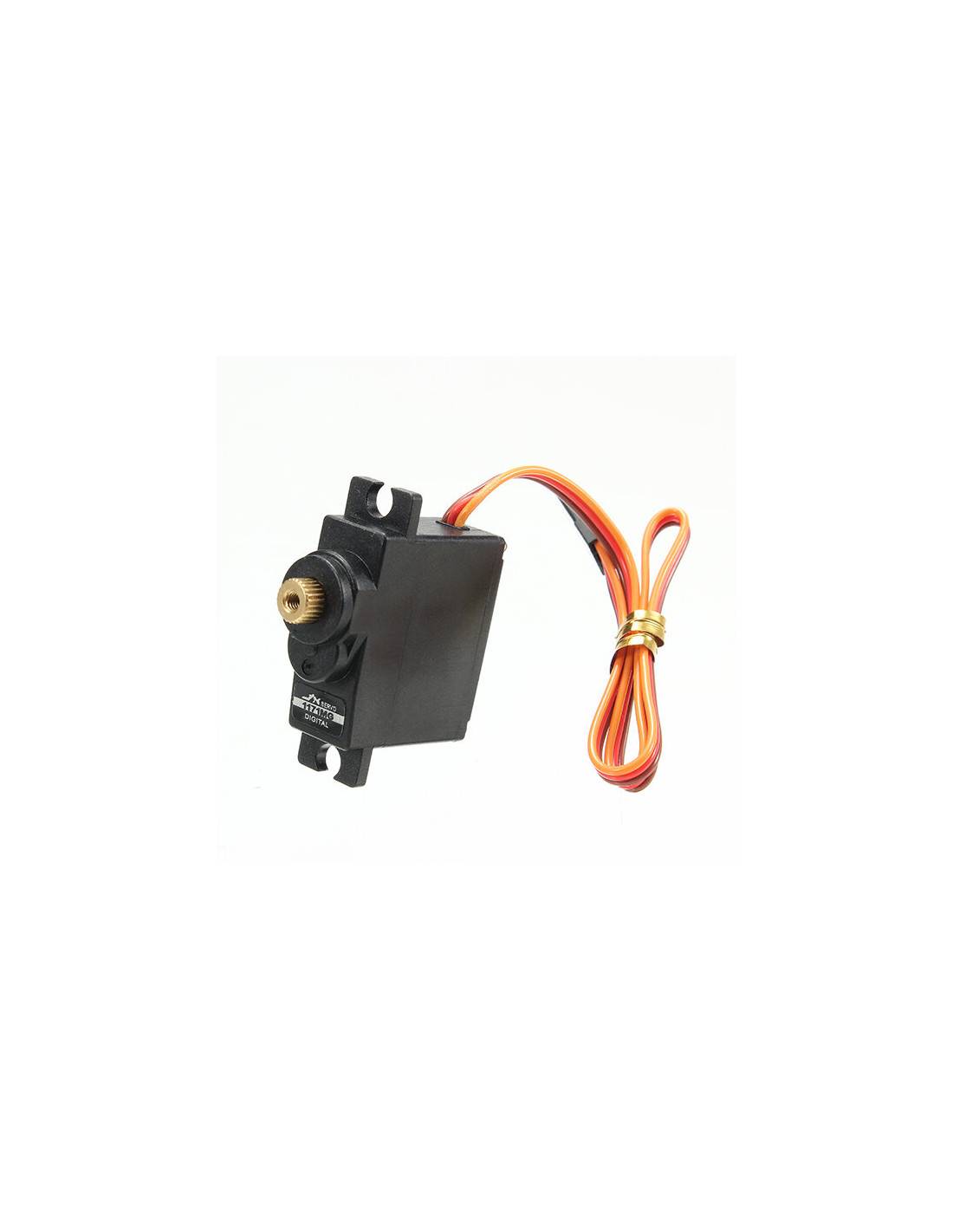

JX PDI-1171MG 17g Metal Gear Core Motor Micro Digital Servo for RC Models

Description:

Brand:JX Servo
Item:PDI-1171MG
Dead band: 1μs
Working frequence: 1520μs / 300hz
Motor: core motor
Operating Voltage:  DC4.8~6.0 V
Operating Speed (4.8V): 0.13sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V): 3.0kg.cm (42 oz/in)
Stall Torque (6V):  3.5 kg.cm (49 oz/in)
Dimensions:30x12x31.7cm
Weight:  17.5 g (0.61oz)

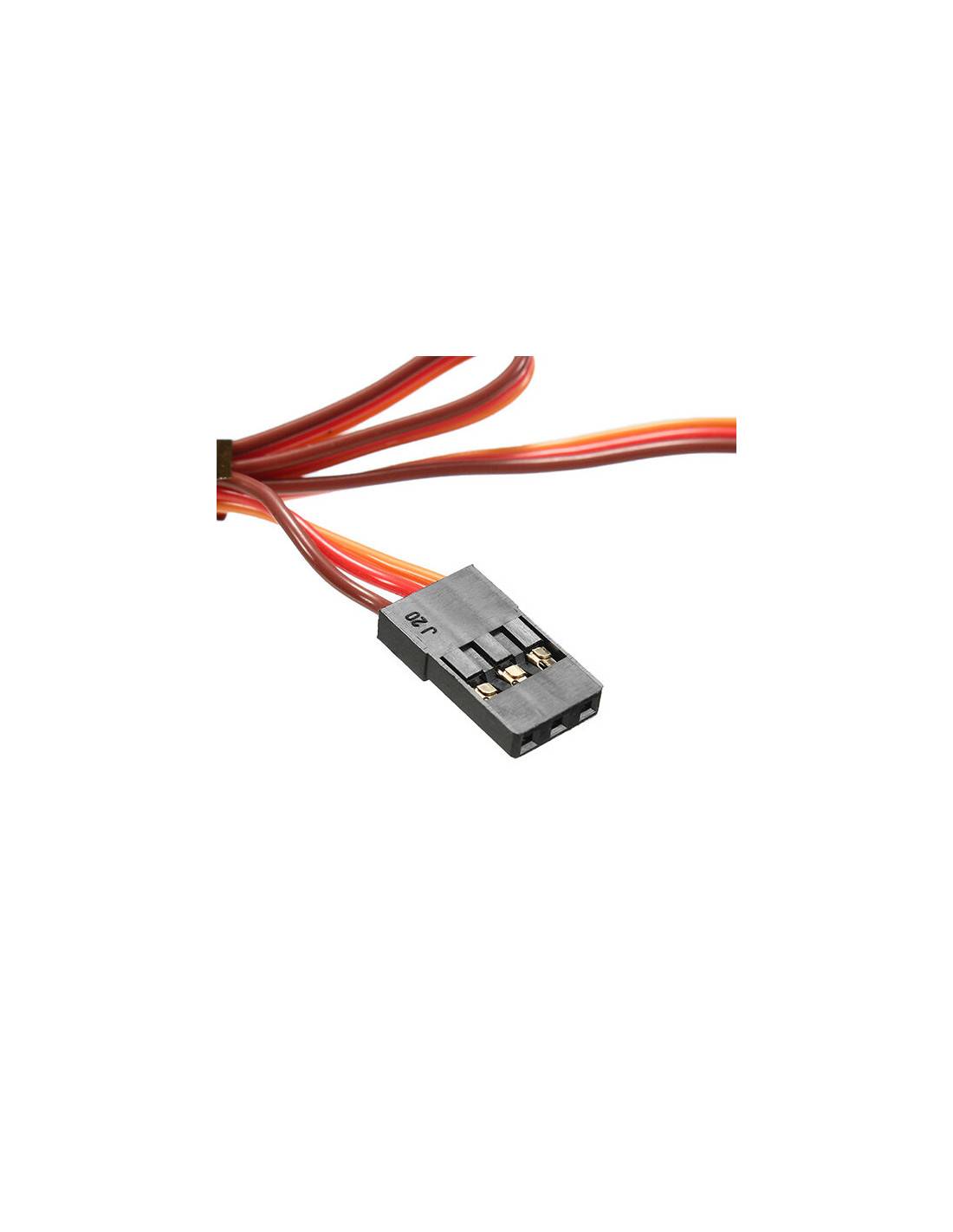

Connector Wire Length: JR  180 mm (7.08in)
Usage:for RC Models

Features:
High quality servo for RC Models
High precision metal gear
Mini size Digital servo

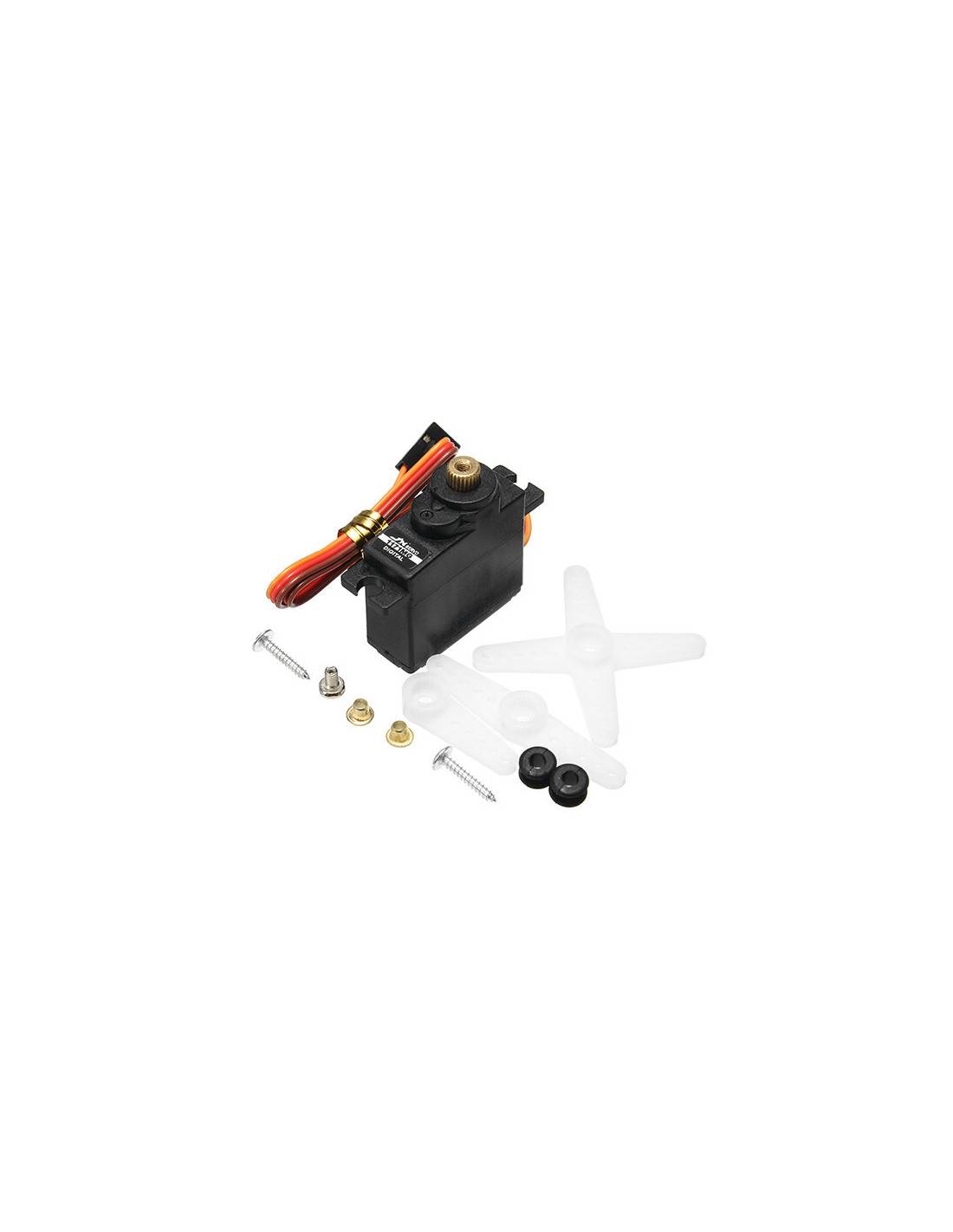

Package Included:
1 x JX Servo PDI-1171MG 17g Metal Gear Core Motor Digital Servo















,,,,,,,
